Add image-processing and scanning functions to your applications!
Supports Embarcadero RAD Studio 12 Athens
Distribute enduser runtime applications free without additional fees or royalties!!
1 PC Developer License
1 WebServer Runtime License
Save images to PDF files!
***Save PDF Files With Passwords Too! ***
Additional thumbnail related functions
Touch screen capabilities
Web camera functions added: Video recording, playback, and still image snapshots
(* Web camera is supported in Delphi only)
New scanning functions
Contains both 32bit and 64bit DLLs and BPL files
(64 bit files are included with C++Builder / Delphi XE3 and above)
Supports 64bit scanning (* Must have 64bit scan driver)
Supports unicode file names
Load images from and save images to HTTP / FTP servers
Set Exif information (* Not all exif tags supported)
Powerful Image Processing!
The ImageKit10 VCL is a component that allows you to add image processing functionality to your applications quickly and easily. With the ImageKit10 VCL, you can write applications that retrieve images from TWAIN scanners and digital cameras; that load and save image files and convert images from one format to another; that edit images, draw shapes and text on images; that display images and print images; that display images as thumbnails, and much more. Most all of the ImageKit10 functionality is also available in DLL style API.
The ImageKit10 VCL has the same stable, easy to use functions as always and supports touch screen capabilites, web camera controls (in Delphi only), and new scanning functions.
The ImageKit10 VCL has no annual subscription fees. Download the latest maintenance releases, updates, and bug fixes from the support section of our website. License holders can download ImageKit10 VCL installers for all supported versions of Delphi and C++Builder.
|The following corporations have been especially helpful in assisting us with our scanning functionality!
The ImageKit10 VCL contains of five controls: the ImageKit control; three web camera controls, Record, Play, Preview; and the Thumbnail control. The ImageKit control provides comprehensive image-processing, printing, drawing, and scanning functionality. The WebCamera controls allow you to program and manipulate movie images from web cameras. The Thumbnail control provides an easy interface for displaying images as thumbnails. These controls are shipped in 4 editions: a 64 bit unicode edition, a 32 bit unicode edition, a 64 bit ANSI edition, and a 32 bit ANSI edition.
Below, we illustrate some of the main features of these controls.
Main Features - The ImageKit control provide functions that can retrieve images from TWAIN scanners and digital cameras, that can display and edit images, that can draw text and shapes on images or apply effect filters and transformations to images, that can make composite images from two seperate images, that can load and save image files and convert images from one format to another, that can print images, et.al.

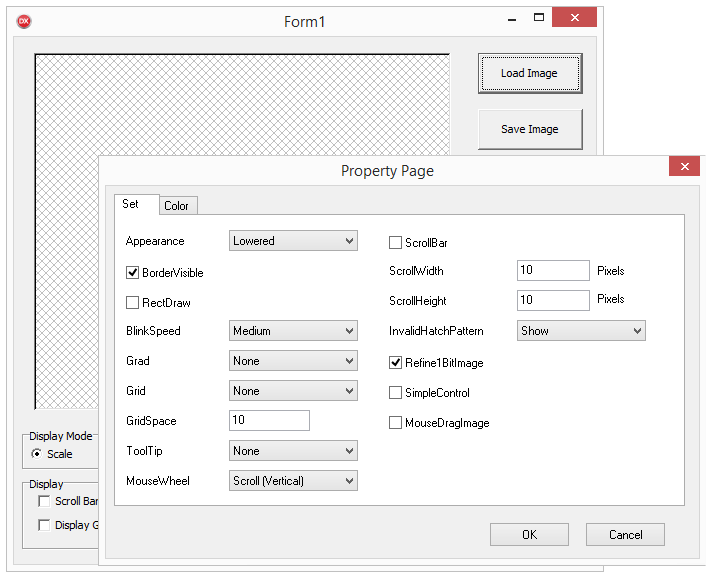

ImageKit Control Design View Property Page

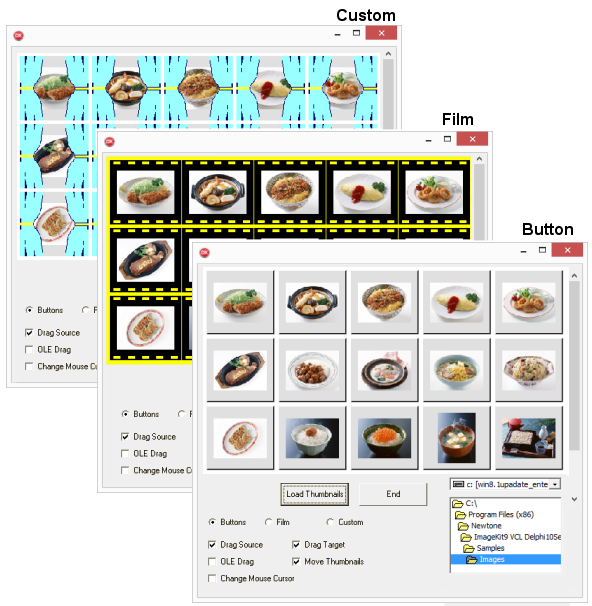

Main Features - The Thumbnail control provides an easy to use interface for displaying images as thumbnails. Select single thumbnails and display original image; select multiple thumbnails, save thumbnail information to file for quick loading, and more.

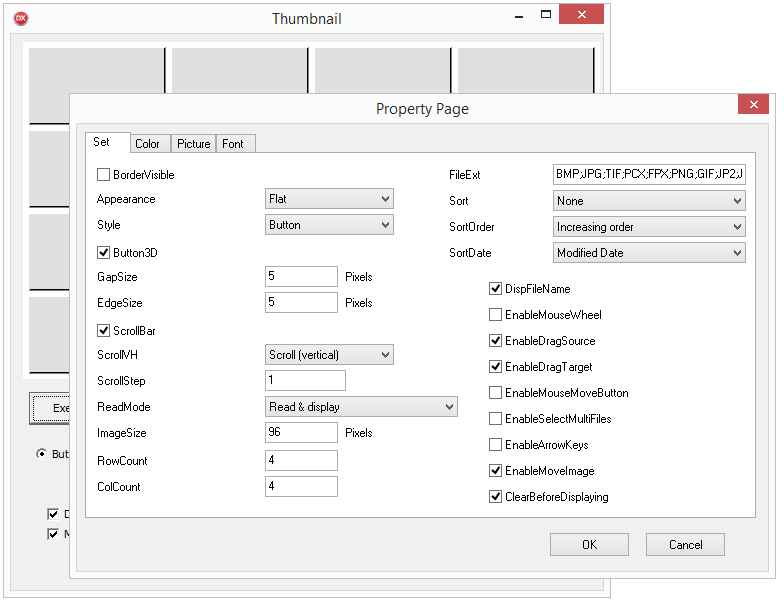

Thumbnail Control Design View Property Page
Record Control (Delphi only)
Main Features - The Record Control captures movies from webcameras.
Preview Control (Delphi only)
Main Features - The Preview Control allows you to preview webcamera.
Play Control (Delphi only)
Main Features - The Play Control plays webcamera movies
Touch Screen Functions
Touch functions used by tablet PCs now provided
Pinch in and Pinch out

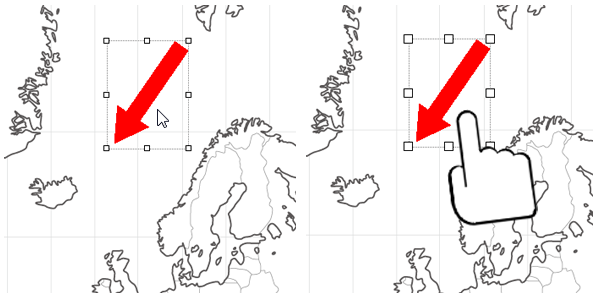

When editing with touch
selecting objects is important. The size of the selection blocks change automatically when using a mouse or when using touch
(* Webcamera supported in Delphi only)

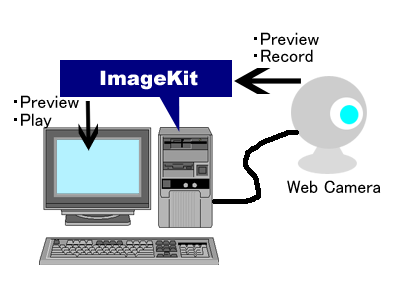

Supports web camera functions of preview, capture (save in avi and wmv formats) and play (avi, mpeg, etc.)

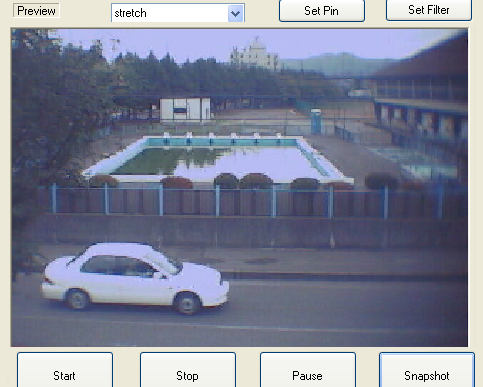

ImageKit10 Preview Control

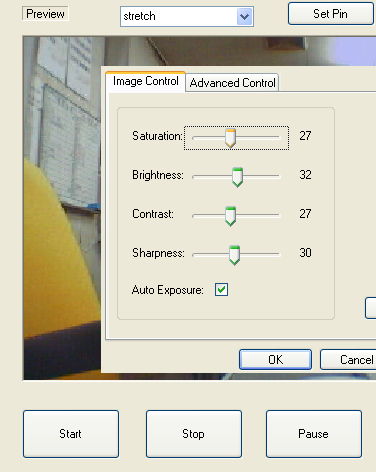

Web camera Settings dialog
Image Display And Edit Functions
The ImageKit control provides powerful image display and editing functionality
Display Raster Data - supports BMP, FPX, GIF, EXIF JPEG, JPEG, JPEG2000, PCX, PNG, TIFF, TIFF CCITTRLE, TIFF G3, TIFF G4, TIFF LZW, TIFF Packbits, TIFF JPEG
Display Vector Data (DXF(2D), WMF, EMF, SVG - uncompressed, SXF

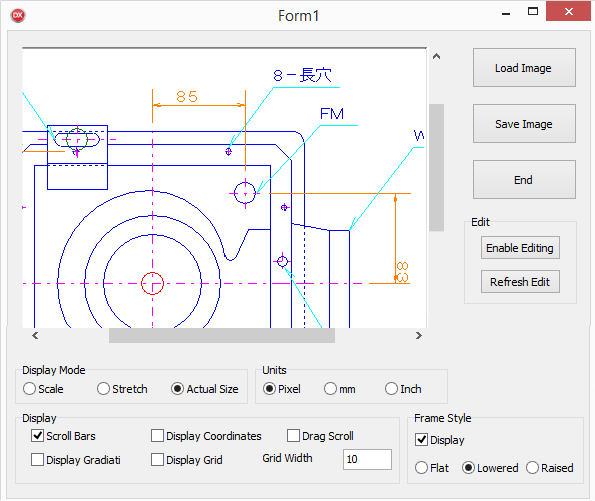

Here is DXF data after it has been loaded and displayed in the
The ImageKit control can display a graduated ruler on its border or a grid on top of images.
Display graduated rule (supports pixels, millimeters, inches units)
Display grid on images (supports pixels, millimeters, inches units)

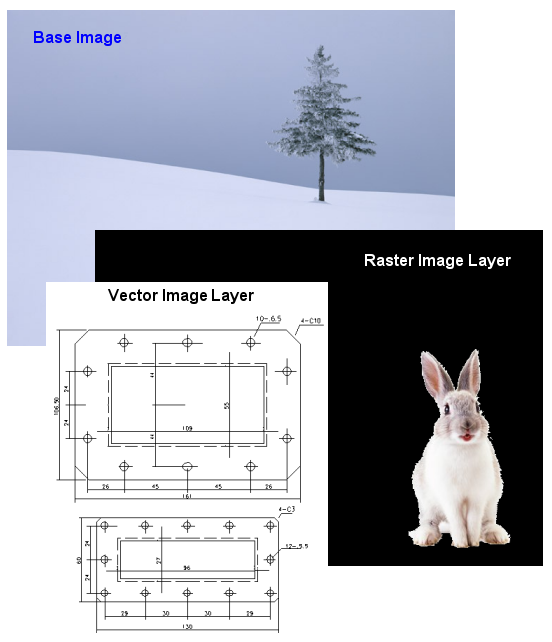

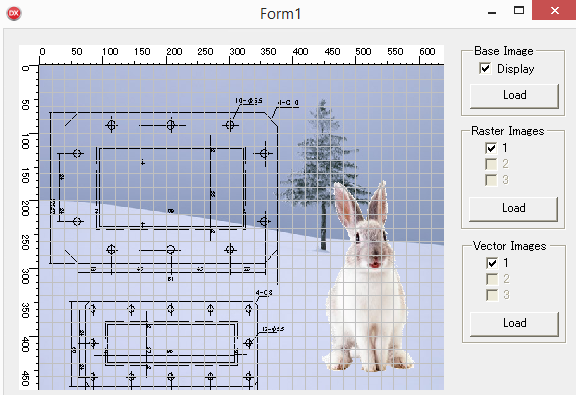

Multi-layer functionality is provided by the ImageKit control's layer interface
The Layer Interface allows you to create applications that can display raster images like JPEG at the same time you are displaying vector data like DXF!
Simultaneously display both raster and vector images (up to 100 distinct image layers)
Base image + raster image + vector image + graduated rule + grid
Display coordinates in tooltip
Scroll by mouse drag
Display black and white (1 bit color) images in high quality display
Automatically avoid data loss when black and white (1-bit color) images are reduced in size.
Scale display mode
If images are larger than the ImageKit Control, the image will be scaled to fit within the control.
Actual Size display mode
If images are larger than the ImageKit Control, scroll bars are automatically displayed
Actual Size display mode (without scroll bars)
If images are larger than the ImageKit Control, scroll bars are not displayed and image is not scaled
Stretch display mode
Images are resized to fit the dimensions of the ImageKit Control
Set display position of the image
With this functionality you can even display images at the very bottom of the ImageKit Control
The Pan Window (supports both raster and vector data)
The ImageKit control provides a useful Pan Window which can display the entire image while only a portion of that image is being displayed in the ImageKit Control. That portion of the entire image in the ImageKit Control is marked with a rectangle in the Pan Window. You can scroll the portion of the image displayed in the ImageKit control by moving this rectangle in the Pan Window. Multiple images simultaneously displayed in the ImageKit Control will also be shown in the Pan Window. Both raster and vector images are supported.

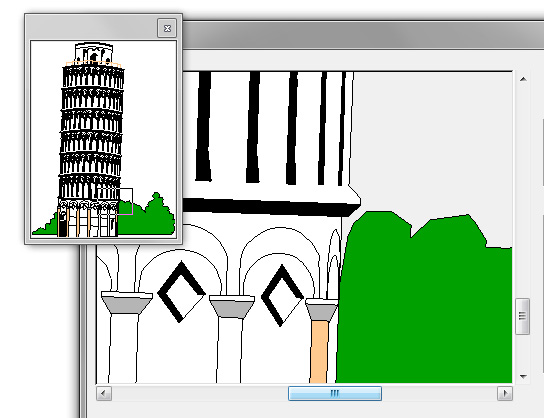

Here is a vector image being displayed in the Pan Window and the
Scrollbar control action
Not only can you scroll with the mouse, but also with code. This includes diagonal scrolling!
It is possible to select areas or regions on an image for processing. This is as easy as moving the mouse over the image. Regional selection can also be done via code.
Image editing toolbar
The Image editing toolbars are an easy to use interface for editing images. The image editing toolbars support both raster and vector data.
Raster Image Editing Toolbar
Use this toolbar with raster images to zoom, to rotate, to select the entire image or select rectangular regions or freehand regions, to rotate selected areas, to undo changes, use a pen tool, retrieve colors from images, draw shapes like rectangles, ellipses, rounded rectangles, straight lines, curves, fill color, use air brush or eraser, set custom stamps, draw text, set fonts, copy and paste, set foreground and background colors, borders, etc.

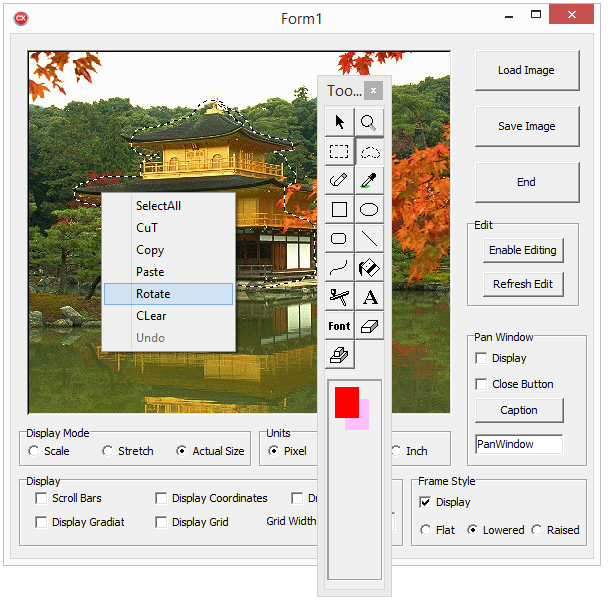

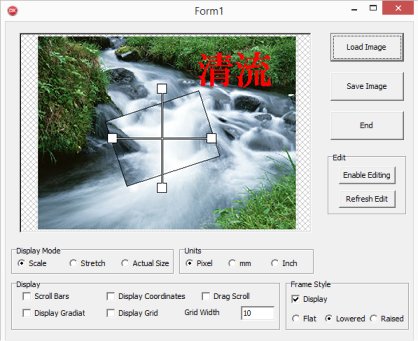

Freehand selection and rotation of a region on a raster image
Provide your enduser with this rich image editing interface with just these three lines of code....
ImageKit1.Edit.EditEnable = True
ImageKit1.Edit.ShowToolBar ikRaster 'display image editing toolbar
ImageKit1.Edit.Modify 'save modifications to image data
Vector Image Editing Toolbar
Use this toolbar with vector images to zoom, to rotate, undo changes, to move vector elements, to select single elements, to select elements in a region, to draw shapes like rectangles, ellipses, rounded rectangles, straight lines, polygons, polylines, to load raster images and embed them, to draw text, set fonts, set foreground and background color, borders, etc.

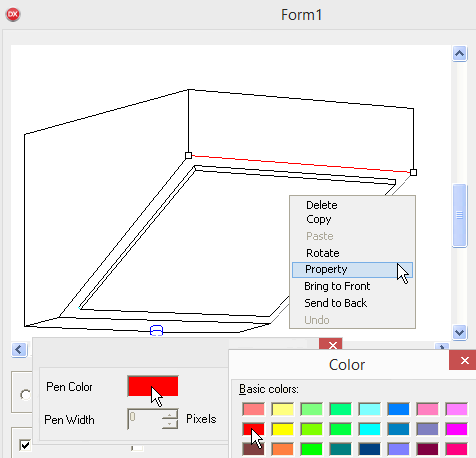

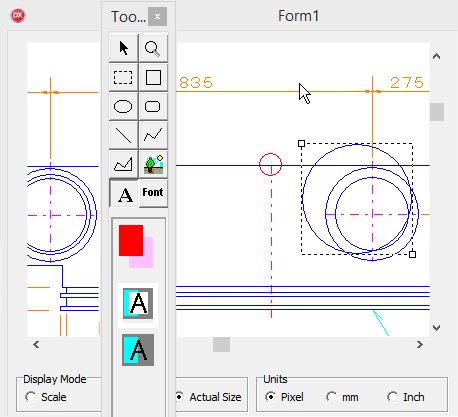

This shows the vector image editing toolbar selecting and changing

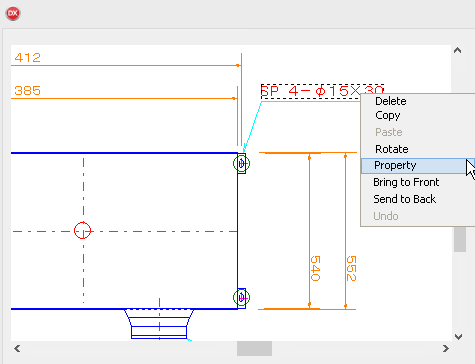

A vector object's (the red line) popup menu - property

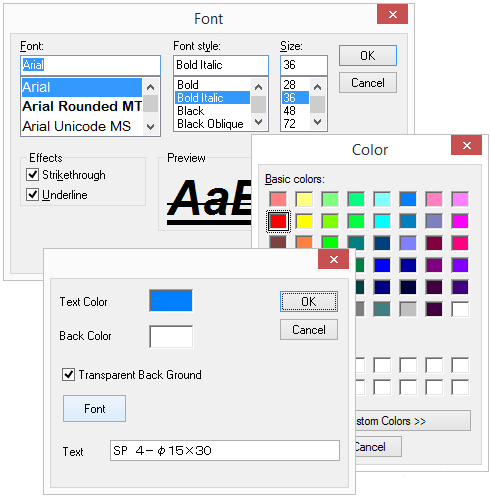

Changing text in vector images
Image Effects And Transformation Functions
The ImageKit control provides numerous effect filters and transformation functions.

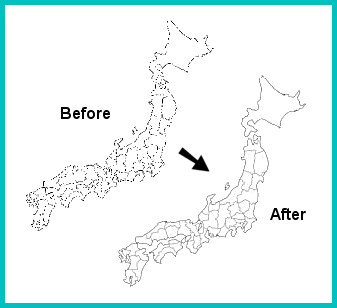

Convert raster data to vector data
Thats right! You can covert raster images to vector data. Take those old hand-drawn diagrams and blue prints, run them through an image scanner and save them as JPEG or BMP files. Then, using the vectorizing functionality, convert those images to DXF or other vector format. Avoid the inevitable deterioration of physical diagrams, vectorized data scales easily, reuse as CAD data, et.al.

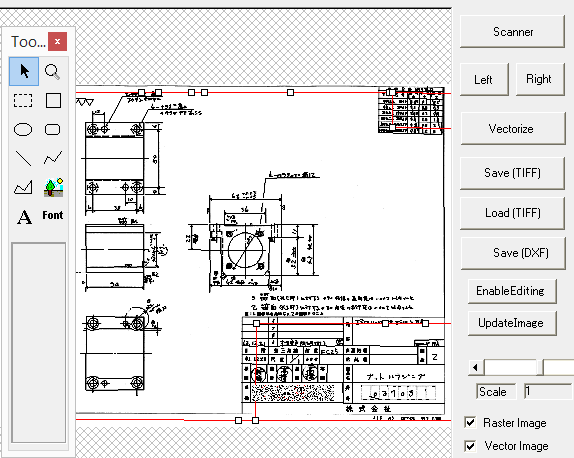

Here is an example of a program that scans, vectorizes, and saves
Display vector data with antialias
By using antialias, you can smooth the rough edges in vector data. In the following two images, notice the outline of the shapes and the text (numbers).

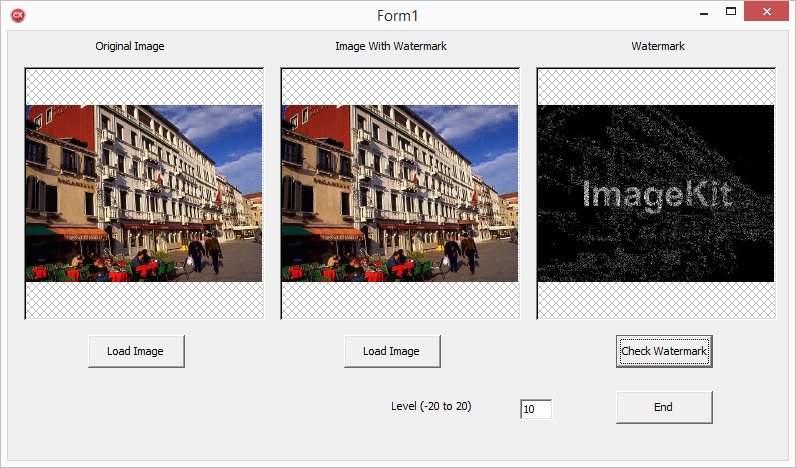

Embed an "invisible" copyright or logo within an image and be able to detect it later.

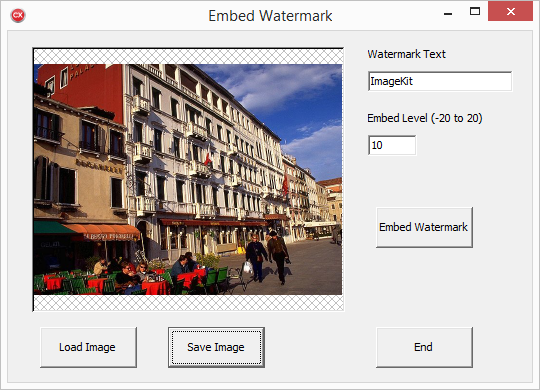

Embedding an digital watermark
Checking for the watermark in an image
Create new images
Select areas on the image and apply changes to only those areas

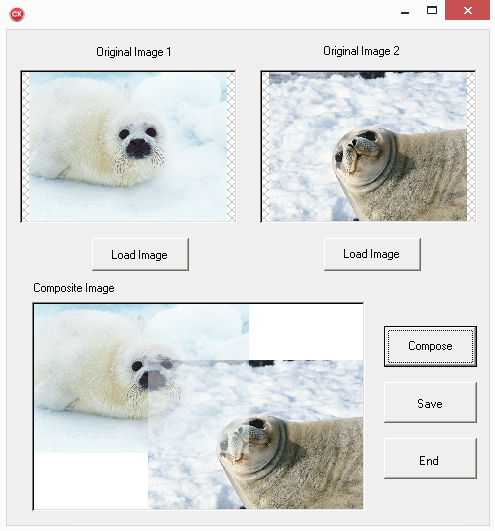

Create composite images from existing images
Use the PasteImage method or the LayerImage method to combine two images. Set the attachment location, set overall transparency, specify a transparent color, clip excess areas, flip images or create mirror images, etc.
Here is an example of two images being attached together with
overall transparency set to 50%

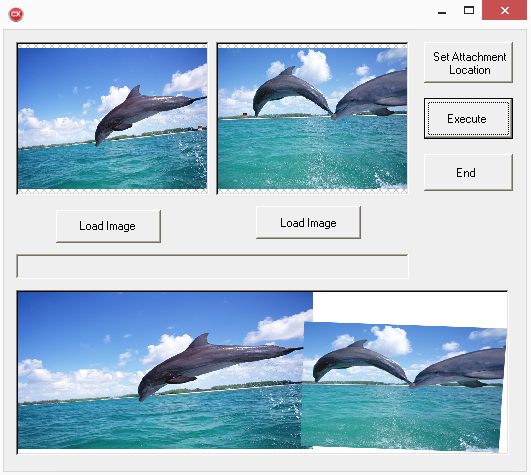

This creates a panorama out of two raster images. By simply specifying two attachment locations on each image, creates a panorama. You can specify the direction images are attached, specify the background color for areas outside the images, set a string displayed in the title bar of the panorama, etc.
Duplicate images Copy and paste images to clipboard Adjust sharpness Noise reduction Blur Mosiac Outline Emboss Antialias Glasstile Color correction (RGB, YCC support; Gamma, Level, and Chroma adjustment) Increase or decrease color Resize Rotate (regional area selection possible; 1/100th of a degree accuracy; interpolation reduces deterioration of rotated object) Flip Mirror Affine correction (deskew) Create your own custom effect filter
Oilpaint, canvas, glasstile, lens, ripple, whirlpinch, waves, motionblur, and more...
ImageKit10 VCL allows you to add scanning functions to your applications quickly and easily. Retrieve images from TWAIN scanners, digital cameras, and film scanners. Use the scan manufacturer's user interface or build your own custom user interface making scanning a nearly seamless operation. Set scan conditions, pixel type, resolution, bit count, brightness, contrast, highlight, threshold, shadow, enable/disable scan indicator, scan mode, datasource name, scan position, scan units, and more. Of course ADF and duplex scanning are supported.

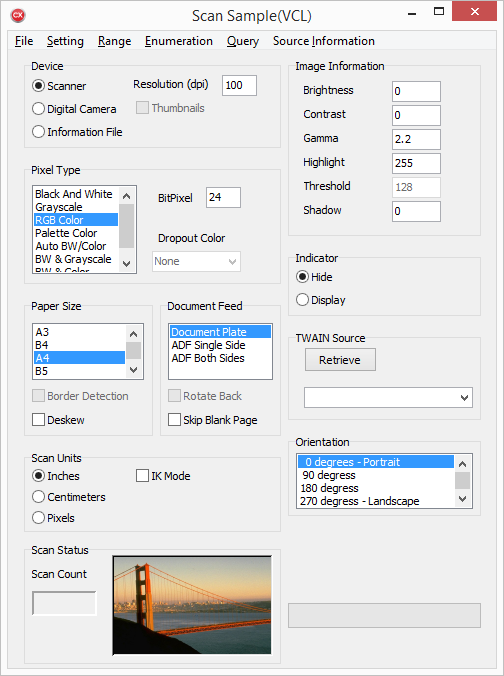

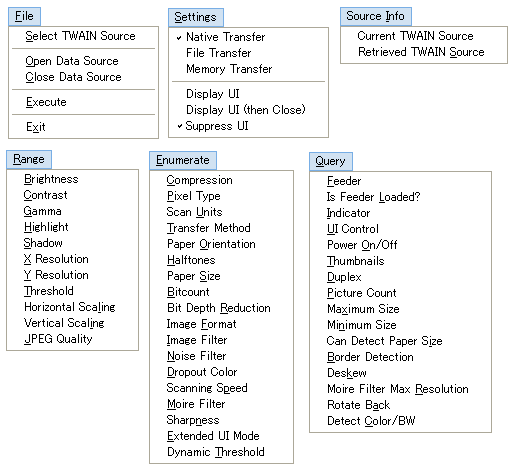

Here is a screenshot of one of our scan sample programs and its menu
Support for text orientation, edge enhancement, text enhancement [Canon DR Scanners]
Support for reflective scanning positive film, color/BW ratio detection, character distinction, focus position adjustment [Epson Scanners]
Support for multistream [Panasonic Scanners]
Support for Color/BW ratio detection, multistream [PFU Scanners]
Support for skipping blank page
Support for punch hole removal [Canon DR Scanners] [Epson Scanners] [Panasonic Scanners]
Support for saving TWAIN driver UI information and scanning with that information
Support for memory transfer with compression (JPEG, PNG)
Support for file transfer
Set and retrieve the compression method for file and memory transfer. Compression methods include: Uncompressed (default), Packbits, Group3-1D, Group3-1DEOL, Group3-2D, Group4, Jpeg, Lzw, Jbig, Png, Rle4, Rle8, Bitfields
Support for dropout color
This sets the dropout color when using a custom-built scan interface.
Support for noise filter
Reduces noise in black and white (1-bit color) images.
Support for image filter
Improves image quality. LOWPASS improves halftone images, BANDPASS improves images that include text, and HIGHPASS improves images that have lines.
Auto paper size detection
When paper size is set to "undefined" (1000), this function automatically detects the size of the paper and scans.
Support for deskew
Corrects skewed documents
Support for moire filter [Epson
Sets the moire Filter when scanning with a custom-built scan interface
Support for unsharpness filter [Epson
Sets the Epson Unsharpness Filter when scanning with a custom-built scan interface
Support for dynamic threshold [Panasonic
Improves clarity and reduces "smudginess" when scanning with a custom-built scan interface
Support for deskew smoothing [Panasonic
Significantly reduces jagged lines and text
duplex scanning support
ADF duplex scanning support
Retrieve thumbnail images from digital cameras
Supports monochrome halftone settings
Set paper size when scanning
Retrieve the range of setting values for a give scan property
Select the scan device
Displays a dialog that allows you to select the scan device you wish to use from all the scan devices installed. If you know the scan device's datasource name, you can shortcut this functionality and directly initialize the scan device. It is also possible to retrieve the datasource list displayed in the dialog.
Supports both scanner manufacturer's UI and custom built
Not only supports scan user interface provided by the scanner manufacturer but also supports the custom scan user interface that you build.
Supports continuous scanning with ADF (auto document feeder) or digital camera. (both manufacturer and custom UI)
Provides functions to set scanning conditions (custom UI)
and retrieve scan information (both manufacturer and custom UI)
Scanning Conditons include: pixel type, scan location, resolution, image bitcount, brightness, contrast, gamma correction, highlight, threshold, shadow, scan indicator on/off, scan mode (document plate, ADF, digital camera, etc.), specify datasource name, select user interface (use manufacturer UI, use manufacturer UI and close after scan, use custom UI), scan units (inches, centimeters, pixels...)
Scanning Information includes: scan location, resolution, scan units (inches, centimeters, pixels...)
Provides events that you can hook into for each scan even when using continuous scanning via ADF or digital camera.
|The following corporations have been especially helpful in assisting us with our scanning functionality!
File Processing Functions
The ImageKit Control provides you with numerous functions for loading and saving image files. Of course, load functions for each file type are provided but there is also a load function that automatically detects each file type. Load files of one type and save them as a different type. For example, it is easy to load CAD data (DXF) and save it a JPEG.

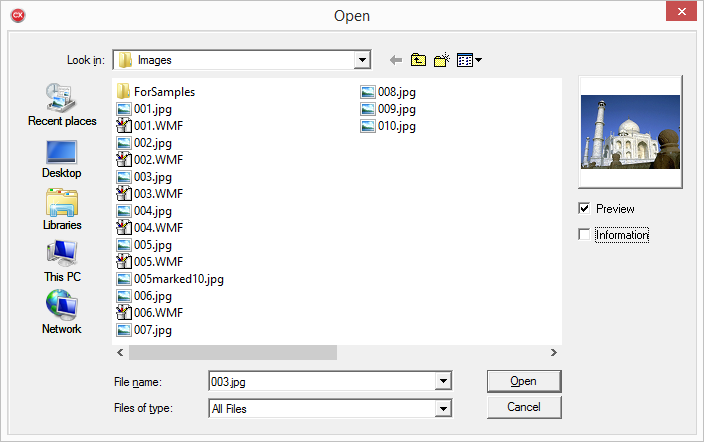

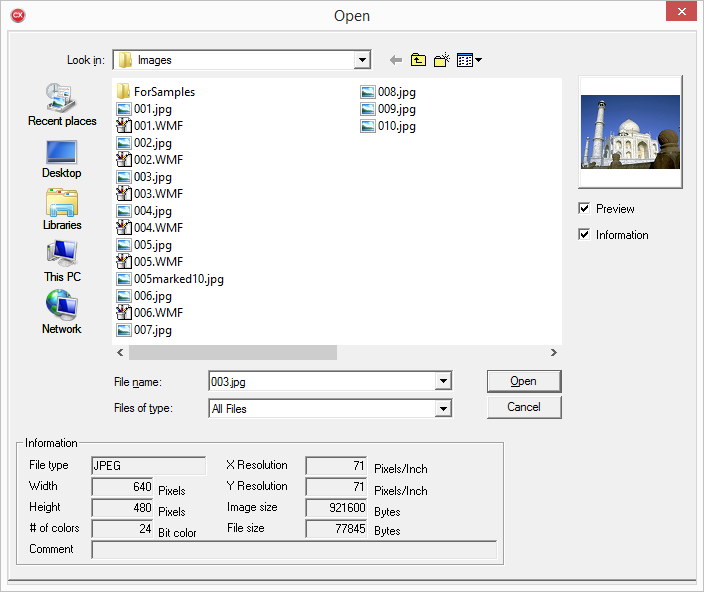

File open dialog with preview function and file information
By using these dialogs, you no longer need any code to select images files to load. Since the image preview of the selected image is shown in real time, not only can you visually confirm the selected image and check its file information, but you will also be pleasantly surprized at how easy this functionality is to use.
Loads BLOB image data from and saves BLOB image data to database
Example code for retrieving and displaying image data from a database
Dim BinaryData() As Byte
Dim connStr As String
Dim ID As String
Dim rs As Recordset
Set rs = CreateObject("ADODB.Recordset")
ID = "001"
rs.Open "select ImageData from Files where ID =" + ID, connStr, 2, 4
BinaryData = rs("ImageData") 'retrieve BLOB data
Set rs = Nothing
'Set the BLOB data into the ImageKit Control
ImageKit1.File.LoadFileMem ikLoad 'Load as DIB data
ImageKit1.Display ikScale 'Display in the ImageKit Control
Steam image data directly to the browser
For example in classic ASP, by using the following:
It is possible to display image data directly in the client browser.
Improved file transfer functions, HTTPS support,
Seperate connect and disconnect functions
In addition to FTP and HTTP file transfer functions, The ImageKit10 now supports file transfer through secure socket layer. New functions for connecting to and disconnecting from FTP and HTTP servers have been added and can now be performed in functions distinct from file transfer.

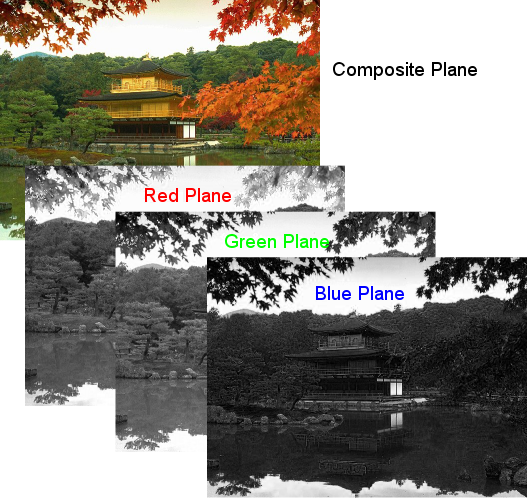

Load images from and save images to separate color
With the following methods, images can be separated into their respective color planes and saved. Likewise, images can be loaded from their respective color planes.
RGBBmpPlaneFileLoad / RGBBmpPlaneFileSave
CMYKBmpPlaneFileLoad / CMYKBmpPlaneFileSave
YCCBmpPlaneFileLoad / YCCBmpPlaneFileSave
Load images from and save images to memory
Supports loading and saving image data directly to memory data.
Load images from and save images to HTTP and FTP servers
Not only are physical paths supported with loading and saving files, but also virtual paths pointing to HTTP or FTP directories are supported. You can now load image directly from and save images directly to your HTTP or FTP server.
Progress event generated when loading and saving
This event is available for all supported image types.
Supported Image File Formats
JPEG2000 is the successor of the well-known traditional JPEG format. JPEG2000 is an image coding system that uses state-of-the-art compression techniques based on wavelet technology. Compared to JPEG, JPEG2000 offers higher compression without compromising quality, progressive image reconstruction, lossy and lossless compression.
Scalable Vector Graphics is an XML markup language for describing two-dimensional vector graphics.. It is an open standard created by the World Wide Web Consortium, which is also responsible for standards like HTML and XHTML.
SXF is a CAD data exchange format specified by JACIC. Support is provided for SXF standard version 3.0.
(WindowsBMP) 1, 4, 8, 16, 24, 32 bit
DIB (WindowsBMP) RLE4, RLE8 4, 8 bit
JPEG 8 bit grayscale, 24 bit color / Standard DCT, Progressive DCT / Exif (JPEG compression, main and thumbnail image, load only)
GIF Transpareny / Interlace / 1, 4, 8 bit / Loads multipage / Saves animation
TIFF 1, 4, 8, 16, 24, 32 bit / Supported compression: Uncompressed, CCITTRLE, FAX3 (1D, 2D), FAX4, JPEG*, PACKBITS, LZW (Color mode: palette, rgb, cmyk) (Multipage: load and save)
PNG 1, 4, 8, 24 bit / transparency / interlace
FPX (Flashpix) 8 bit grayscale, 24 bit / Supported compression: Uncompressed, JPEG compression, Single Color compression
PCX 1, 4, 8, 24 bit
(*) Not all Tiff-Jpeg format files are supported, particularly older versions of this format.
(**) Vector data may be altered or lost when it is loaded or saved.

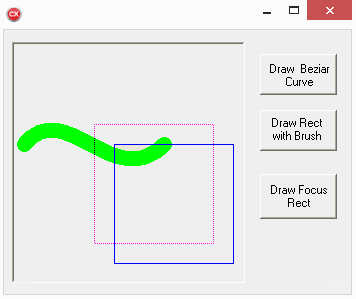

The ImageKit control provides functions for drawing shapes and text to the designated object (screen, printer, or memory data). For example, use this functionality to draw a polygon and text on the image currently displayed in the ImageKit Control.
Draw bezier curves
Use the brush to draw rectangles
Draw a focus rectangle

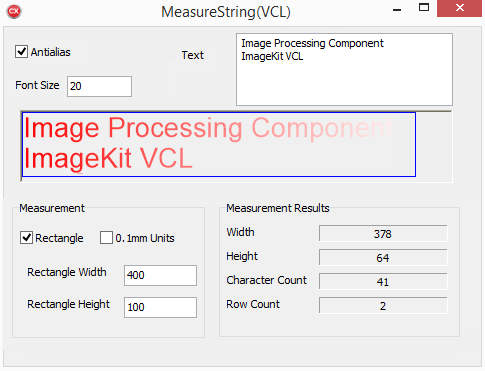

Uses GDI+ to draw text (Solid, Hatch, Texture, Gradiation)
Draw image to window handle (hWnd) Set the desired color to a specific pixel Retrieve the color from a specific pixel Retrieve image from the device context (Hdc) Select the designated drawing object Fill one color with another color Draw image to the device context (Hdc) Draw straight lines Draw rectangles Draw ellipses Draw polygons Draw polylines Draw arcs Draw chords Draw arrows Draw rounded rectangles Draw filled rectangles Draw text within a specified rectangle Darw text from a specified point Retrieve height and width of text from text information

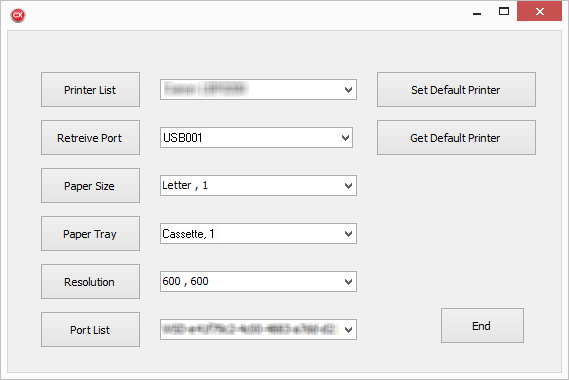

Provides functions relating to printing and manipulating printers
List ports Retrieve list of paper size names Retrieve list of paper tray names Retrieve list of printer resolutions Set default printer
Save printer information and settings into a "printer
With the printer file you can print without displaying the Print dialog. Once you save the printer settings then you can reuse them easily without the Print dialog.
Start print job Start print page End print page End print job Retrieve height and width of the valid print area for a given paper size List printer names
Thumbnail Control Display Functions
The ImageKit10 VCL Thumbnail control lets you display images as thumbnails by simply selecting the folder and file type. All image files of that file type within the specified folder will automatically be displayed as thumbnails. The Thumbnail control displays thumbnails in an easy to use, fast, customizable control.
Change the thumbnail display order
Now you can change the order in which the thumbnails are displayed by simply moving them around with the mouse.
Delete a thumbnail
With the Delete Method, you can remove a thumbnail by specifying the image number.
Change the layout of the thumbnail dialog
You can specify the number of columns and rows of thumbnails that will be displayed within the control as well as the gap size, etc.
Abundant thumbnail settings
Thumbnail settings include: folder, file types (BMP, JPG, GIF, TIFF, WMF, EMF, etc., load and mix different file types), number of columns, number of rows, scrollbar on/off, scroll action (scroll using code), background colors, display size, gap size, display pattern (film, button, custom), et.al.
Generates file load events
When image files are loaded and displayed as thumbnails, events are generated and can be used to execute code for each file loaded.
Supports the display of custom patterns
Create you own pattern when thumbnails are displayed. Simply specify the pattern images and set transparent colors.
Simultaneous thumbnail selection
Supports the selection of multiple thumbnail images at the same time.
Drag and drop
Drag images from Windows Explorer or from another ImageKit Thumbnail Control and drop them directly into the Thumbnail Control.
Increase speed in displaying thumbnail image
Load images into the Thumbnail Control once and then, by using the ImageKit10 VCL Thumbnail File, greatly increase the display speed whenever they are loaded again.
ImageKit10 VCL Licensing
The ImageKit10 VCL license is a "PC developer" license. This means that a seperate license is required for each computer where the ImageKit10 VCL is used to develop software.
If the ImageKit10 VCL is used by only one person on one computer, then only one license is required.
If the ImageKit10 VCL is used by only one person, but this person uses it on two computers, then 2 PC developer licenses are required.
If two software developer's use the ImageKit10 VCL but only on one computer, then only one license is required.
For software developer's who require multiple licenses, we have multiple license packs available at a significant discount.
When applications using the ImageKit10 VCL run on a web server, a seperate webserver runtime license required.
ImageKit10 VCL License Activation
For the ImageKit10 VCL to work properly, the license must be activated. License activation insures that the correct number of licenses are properly installed. Activation usually takes place when the ImageKit10 VCL is installed but activation can be postponed until later. In the license is not activated within 2 weeks of installation, the ImageKit10 VCL will stop working until it is activated. For more information about license activation, please refer to the ImageKit10 VCL documentation or contact us at firstname.lastname@example.org.
ImageKit10 VCL Runtime License
The ImageKit10 VCL is runtime license free for all registered developers. The registered developer can make as many different runtime applications and can distribute as many of each of these applications as he or she wishes with out limit.* Only registered users are allowed to do this. To register, simply send us your contact information along with the serial number of the ImageKit10 VCL that you are using to email@example.com. For more information, please visit our user registration page.
*This does not apply to webservers. Applications running on a webserver or
require an ImageKit10 VCL WebServer Runtime License.
For details please contact firstname.lastname@example.org
The ImageKit10 VCL can only be registered to the person using it. It cannot be registered to a company, a group, or any other entity. USER REGISTRATION IS NOT TRANSFERRABLE WITHOUT THE EXPRESSED WRITTEN CONSENT OF NEWTONE CORPORATION.
If the ImageKit10 is used to create redistributable components, i.e. VCL controls, VCL components, DLLs, etc., then a redistribution license allowing a specific number of such software may be required. For more information, please contact us at email@example.com
Suggested Retail Price (Single PC Developer's License)
1 Single PCDeveloper's License US$899.00
1 Webserver Runtime License US$399.00
Microsoft Windows 11 / 10 / 8.1 / Server 2022 / Server 2019 / Server 2016 / Server 2012 R2 / Server 2012
Embarcadero RAD Studio 12 Athens (C++Builder 12 Athens/Delphi 12 Athens)
Embarcadero RAD Studio 11 Alexandria (C++Builder 11 Alexandria/Delphi 11 Alexandria)
Embarcadero RAD Studio 10.4 Sydney (C++Builder 10.4 Sydney/Delphi 10.4 Sydney)
Embarcadero RAD Studio 10.3 Rio (C++Builder 10.3 Rio/Delphi 10.3 Rio)
Embarcadero RAD Studio 10.2 Tokyo (C++Builder 10.2 Tokyo/Delphi 10.2 Tokyo)
Embarcadero RAD Studio 10.1 Berlin (C++Builder 10.1 Berlin/Delphi 10.1 Berlin)
Embarcadero RAD Studio 10 Seattle(C++Builder 10 Seattle/Delphi 10 Seattle)
Embarcadero RAD Studio XE8(C++Builder XE8/Delphi XE8)
Embarcadero RAD Studio XE7(C++Builder XE7/Delphi XE7)
Embarcadero RAD Studio XE6(C++Builder XE6/Delphi XE6)
Embarcadero RAD Studio XE5(C++Builder XE5/Delphi XE5)
Embarcadero RAD Studio XE4(C++Builder XE4/Delphi XE4)
Embarcadero RAD Studio XE3(C++Builder XE3/Delphi XE3)
Embarcadero RAD Studio XE2(C++Builder XE2/Delphi XE2)
Embarcadero RAD Studio XE(C++Builder XE/Delphi XE)
Embarcadero RAD Studio 2010(C++Builder 2010/Delphi 2010)
*If you wish to use a development container older than the above-mentioned compatible container, please contact us. Some older versions may not be supported.
Supported Scan Devices (TWAIN ONLY)
Image Scanners (+ADF) / Digital Cameras / Flim Scanners
DirectX 9 or above (when using the WebCamera controls)
