HowToRunWin32Samples

The following is a step by step explanation for running one of the password protection sample projects in Visual Basic 6. By following these steps you will be able to run all the samples and also understand how to add password protection to your own applications.

Win32(64) Password Protection Sample "Vb6"

The following is an explanation of the Win32(64) sample program called "Vb6". It can be found in the following default Installation location:

C:\Program Files\ProtectKit3.5\Password Protection\Set Password Protection\For Win32(64)\Sample Programs (Win32-64)\32\Vb6\

For this explanation, I am using a Windows 7 32bit operating system. If running on a 64 bit operating system, your paths may be slightly different, though nothing that should cause confusion. I wanted to keep the sample programs that shipped with the ProtectKit3.5 in pristine condition so I created a new folder called "Run Pro35 Samples" at

"C:\Run Pro35 Samples\"

and then copied the ProtectKit3.5 sample project that I wanted to run into this folder.

Step 1:

Copy the entire "Vb6" folder from the installation location given above into the test folder. In my case that is the "C:\Run Pro35 Samples" directory.

Step 2:

Copy the ProFunc32.dll and the ProInfo32.dll into the same directory as the Project2.exe (by default this sample project's name is Project2.vbp for some reason). You will find the ProInfo32 file in this default installation directory:

C\Program Files\ProtectKit3.5\Password Protection\ProInfo Files\ProInfo32.dll

Note: The ProInfo32.dll is for 32 bit applications, whether they are running on a 32 or 64 bit operating system. The ProInfo64.dll is for 64 bit applications. The ProInfo32(64).dll files are the same for .NET applications or Win32(64) applications.

The ProFunc32.dll can be found in this default installation directory:

C:\Program Files\ProtectKit3.5\Password Protection\Set Password Protection\For Win32(64)\ProFunc Files (Win32-64)\ProFunc32.dll

Note: The ProFunc32.dll is for 32 bit applications built in Delphi, C++Builder, VC++, or VB6. The ProFunc64.dll is for 64 bit applications built in Delphi, C++Builder, VC++. The ProFunc32(64).dll files CANNOT be used with .NET applications. For .NET applications, use the ProFuncNET32(64).dll file.

Step 3:

Open the project in VB6. Make sure that the ProtectKit3.bas file is included in the Vb6 project as a standard module. This file gives the declarations for the ProtectKit35 DLL functions. The ProtectKit3.bas file can be found in this default installation directory:

C:\Program Files\ProtectKit3.5\Password Protection\Set Password Protection\For Win32(64)\Include Files (Win32-64)\ProtectKit3.bas

If this file is not included in the project, please add it. To do that....

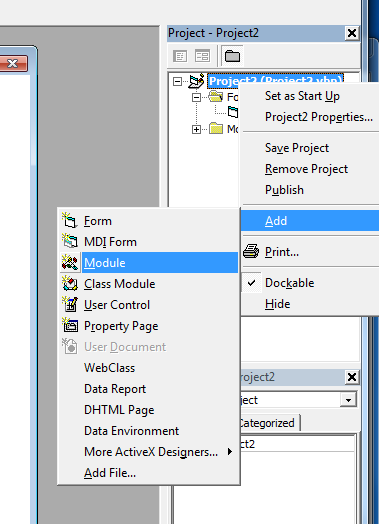

1. In the Project Explorer, right click the Project, Select Add --> Module

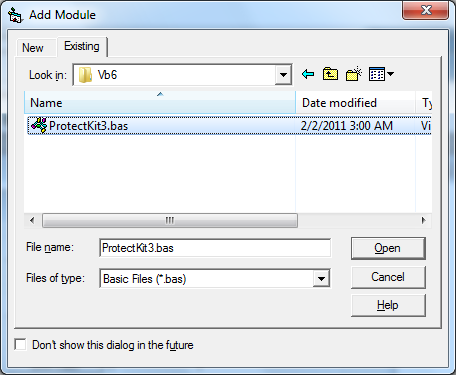

2. Choose the Existing Tab and browse to the ProtectKit3.bas file and click Open

Step 4:

Rebuild the Project2.exe.
Close the Vb6 project.

Step 5:

Set Protection:

1. Open the Set Password Protection Tool for Win32(64) applications. This tool is called "Pr3SetProtect.exe" and can be found in this default installation location:

C:\Program Files\ProtectKit3.5\Password Protection\Set Password Protection\For Win32(64)\Set Password Protection Tool (Win32-64)\Pr3SetProtect.exe

2. Click the "Open" button, and browse to the ProInfo file that you copied above. It should be in the same directory as the Project2.exe you have just built. In my case that is here:
"C:\Run Pro35 Samples\Vb6\ProInfo32.dll"

3. Select the Exe file you are protecting. This will be the Project2.exe you just built.In my case this is here:
"C:\Run Pro35 Samples\Vb6\Project2.exe"

4. Choose the PC Indentifiers you want to use. This determines how strictly you want to define the computer's hardware signature. I am accepting the default setting which is the least restrictive.

5. Choose a Lockword. The trial version of the ProtectKit3.5 requires that you use the Lockword "AbcdefgH". I will use this also. In your applications you should choose a different lockword and keep it secret. The lockword must consist of English alphabet (a through z) and/or numbers 0 through 9. The lockword must contain at least 8 characters and cannot exceed 64 characters.

6. Choose the Protection Type. Here I am choosing Standard protection which means the application will be locked initially until it is unlocked with a password. Once unlocked, it will run indefinitely.

7. Set these protection setting into your application by clicking the Save button at the top. A messagebox will appear telling you if the protection has been set.

NOTE: You can change the name of the ProInfo32.dll file if you want to. You do this by using the Save As button. The New button is essentially the same as the Open button. If you use the Open button with an existing ProInfo32(64).dll, the Set Password Protection Tool will ask you for the Lockword. If you use the New button, it will delete all existing protection settings and start over. The results are essentially the same.

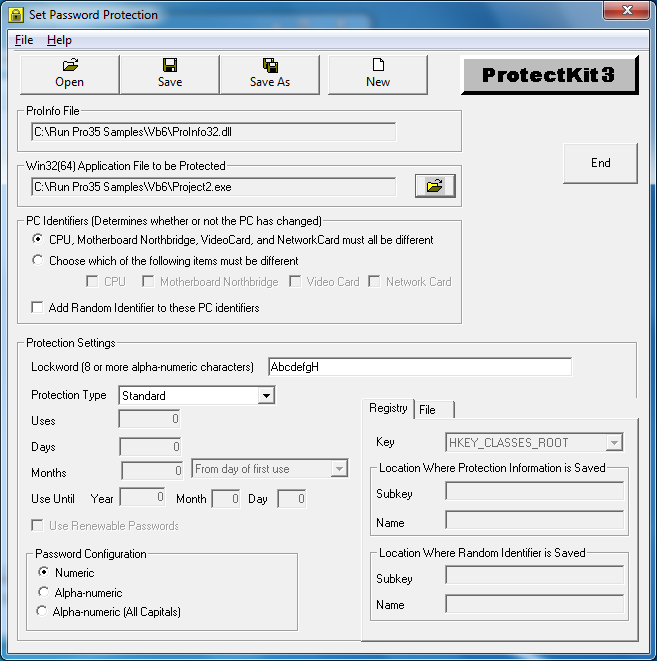

Here is a screenshot of the Set Password Protection Tool with the above settings.

For more details please refer to the explanation for the Set Password Protection Tool For Win32(64) Applications.

Step 6:

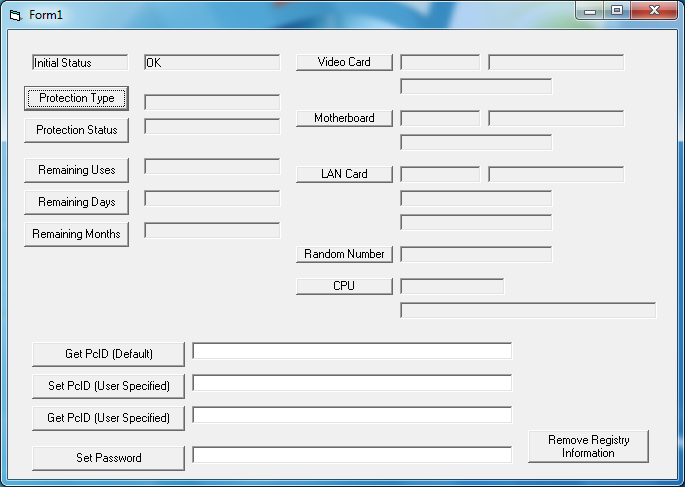

You have now set protection in this application. Try running it. Double click on the Project2.exe. You should see something like this....

At the top, the Initial Status should say, "OK". This means that the ProtectKit System Driver is properly installed and running, that the ProInfo and ProFunc files are where they should be, that the protection information embedded in the application matches that set in the proInfo file and so on. If you are getting some errors here then see the trouble shooting section.

Click the Protection Type button: It should say "Standard protection"
Click the Protection Status button: It should say, "Locked"

The other buttons, "Remaining Uses", "Remaining Days", and "Remaining Months" pertain to different protection types and are not relevant. Clicking them will return values of -1.

You can also retrieve the hardware information with this application by clicking the "Video Card", "Motherboard", "LAN Card", "Random Number", and "CPU" buttons. This information is used to create the default Pcid that indentifes the computer running this application.

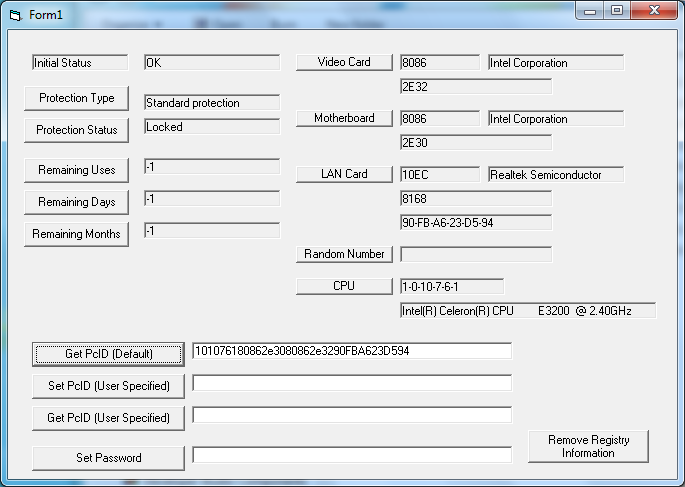

Here is a screenshot showing this information:

Notice that this application is locked. To unlock the application, you need to retrieve the PcID and enter it into the Password Generator. The ProtectKit3.5 has three ways to generate passwords. In this example we will use the Pr3PassGen.exe. It can be found in the following deflault directory:

C:\Program Files\ProtectKit3.5\Password Protection\PasswordGenerators

Also in this directory, besides the Pr3PassGen.exe, you will see a Pr3PassGen.dll and Pr3PassGen.ocx. These two programable password generating intefaces let you send unlock passwords to your endusers programatically.

     1. Double click the Pr3PassGen.exe.
     2. Enter the Lockword, which in our case is: AbcdefgH
     3. Copy the PcID from the application...To retrieve it click the GetPcID (default) button.
     4. Click the Generate Password button
     5. Copy the Password from the Password Generator and paste it into the application in the textbox next to the Set Password button.
     6. Click the Set Password button.

This will unlock the application. To check that. Click the Protection Status button again.

The application has now been unlocked and will run indefinitely on this machine. If it is copied to another computer it will stop running.

Please try out other protection types using this sample project.

TroubleShooting:

When this application starts up, under the Form Load event, the PK3Initialize method executes. This method starts the Protectkit3.5 and tells you that:

     1. The ProtectKit System Driver is working properly.
     2. The protection information in the application matches the protection information in the ProInfo32.dll.
     3. The lockword has been retrieved from the protection information and it has passed the check.
     4. The application is running on a local drive.
     5. There are no other errors.

If you get a messagebox saying this, "ProtectKit isn't working."
That means the ProtectKit System Driver is not working. This system driver is installed on the computer where you installed the ProtectKit3.5. For details about this system driver please refer to the "ProtectKit System Driver" explanation in the help file of visit our online help here: ProtectKit System Driver

If you have deployed this exe to another computer then you will need to install the ProtectKit System Driver there by executing the Ddscm.exe on that computer. You will also need to do this with your own application when you deploy it. Please refer to the explanation of the ProtectKit System driver mentioned above and to Options For DdScm.exe in the help file or here: Options For DdScm.exe

If you get a messagebox saying this, "Unable to read protection information file."
That means the ProInfo32(64).dll file is not in the same directory as the application's exe file.

If you get a messagebox saying this, "Lock word is incorrect."
The lockword retrieved from the protection information embedded in your application is either incorrect or it hasn't been set yet. This can happen if you have recompiled your EXE without resetting protection using the Set Password Protection Tool. For details about how to set protection see: Set Password Protection Tool for Win32(64)
