Using the Web ImageKit Control in Visual Studio 2008

A. Create New Web Project
     1. Open VS2008, select New Project
     2. Select Visual C#, Web, ASP.NET Web Application
     3. Name the project and click OK
     4. Add the ImageKit.NET3 Controls to the Toolbox

B. Add ImageKit Web Control to the web form

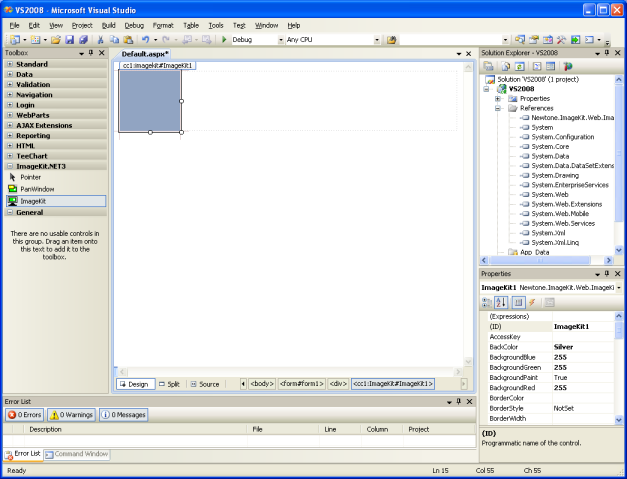

     1. Drag the ImageKit Control from the toolbox onto the Web Form.



     By default it will be placed in the top left corner of the form in its default size.
     Before changing its size and its location on the form, change its Style:Position property to Absolute. See next step.

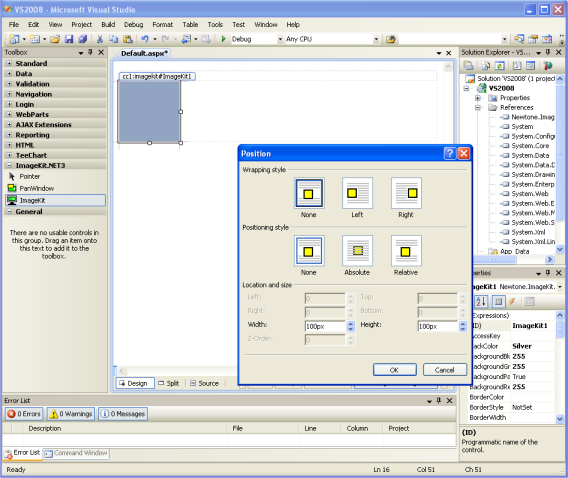

     2. Set the position of the ImageKit Control to ABSOLUTE
          a. From the FORMAT menu, select POSITION
          b. In the Position dialog, select Absolute from the Position Style
          c. In the right pane, under Position Mode, select Absolute from the drop down menu.
          d. Click OK



     3. You may now use the mouse to resize the ImageKit Control and set its location on the form

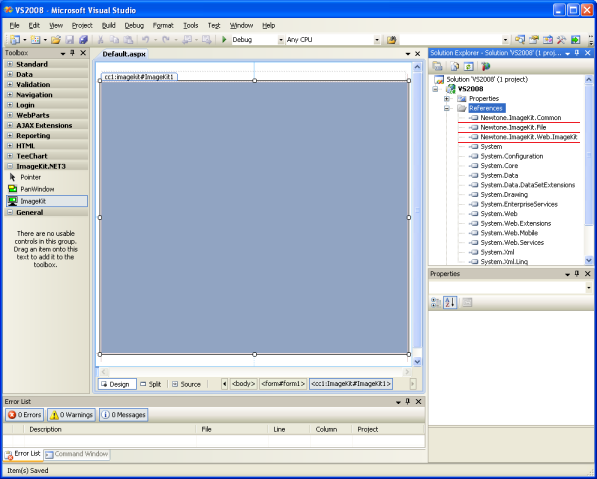

     4. In the Solution Explorer, make sure there is a reference to the following assemblies:
          Newtone.ImageKit.Web.ImageKit
          Newtone.ImageKit.Common
          Newtone.ImageKit.File



If any of these assemblies are not referenced, add references to them by right clicking "References" in the Solution Explorer and selecting "Add Reference" then browsing to the appropriate assembly.



C. Set the Http Handler. The Web ImageKit Control uses an Http Handler defined by the Newtone.Web.IkStream class. This class allows image data to be displayed within the ImageKit Control. There are two ways to add the HTTP Handler to your project.

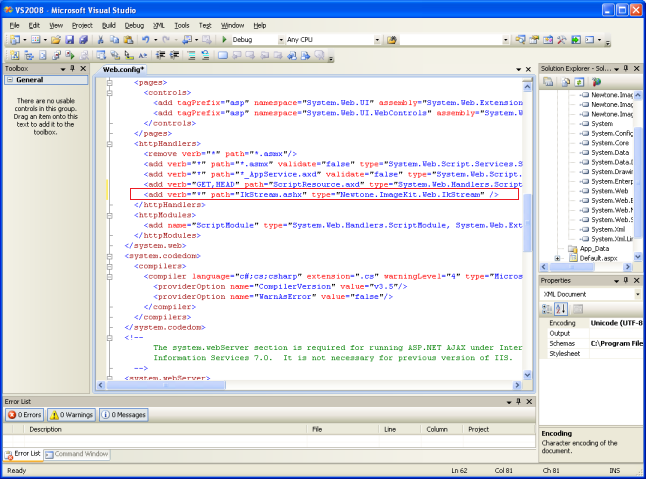

     1. The easiest way to add the Http Handler to the Web.Config file.
          a. To do this add the following tag to the web.config file
               <system.web>
                    <httpHandlers>
                         <add verb="*" path="IkStream.ashx" type="Newtone.ImageKit.Web.IkStream" />
                    </httpHandlers>
               </system.web>



2. Another way to add the Http Handler is to copy the IkStream.ashx file to the project's root directory. The IkStream.ashx file can be found in the folder called "System" under the directory where the ImageKit.NET3 was installed. After you have copied this file to your project's root directory, then add it to the project. In the Solutions Explorer, right click on the project and choose "add existing item". Browse to the IkStream.ashx file, select it and add it to the project.

D. Set code to display the image when the page loads...

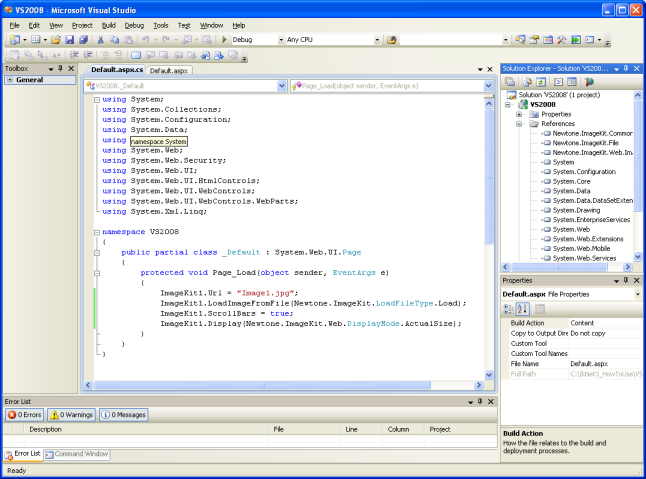

     1. In the Page_Load event, set the following code.
          protected void Page_Load(object sender, EventArgs e)
          {
               ImageKit1.Url = "Image1.jpg";
               ImageKit1.LoadImageFromFile(Newtone.ImageKit.LoadFileType.Load);
               ImageKit1.ScrollBars = true;
               ImageKit1.Display(Newtone.ImageKit.Web.DisplayMode.ActualSize);
          }




Make sure that Image1.jpg is in the root directory of the web application or within a sub directory within the scope of the web application's virtual directory. The above code will load "Image1.jpg" and display it in the Web.ImageKit control in actual size with scroll bars.



IMPORTANT POINTS TO KEEP IN MIND:
1. Image must be in a path accessible by the virtual directory where the ImageKit Control runs. This means the image must be in the web application's root directory or in a sub directory below this root. Physical paths or virtual paths not accessbile by the web application will not be able to resolve the path and the image will not be displayed.
2. Make sure the Http Handler is working by adding the Http Handler to the web.config or by adding the IkStream.ashx file to the project.



The ImageKit.NET3 is created by Newtone Corporation
