1. The ImageKit Control display basics:

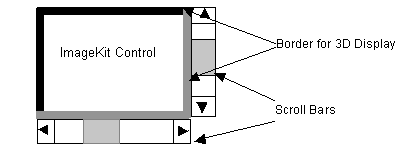

An example of the ImageKit Control is shown below. In this example,
the BorderVisible,
Appearance,
BackColor,
and ScrollBar
properties have been set.
BorderVisible:
Draws the border on the ImageKit Control
Appearance:
Sets the ImageKit Control border to lowered, raised, or flat.
BackColor:
Sets the background color of the ImageKit Control.
ScrollBar:
Sets whether or not scroll bars are displayed.
2. Coordinates in the ImageKit Control
The area of the ImageKit Control can be thought of as a coordinate
plane that extends from the top left corner of the ImageKit
Control, the origin, to the bottom right corner of the ImageKit
Control.
When an image is displayed in the ImageKit Control, the location of
the top left corner of the image, called OriginX and OriginY, is
described in terms of its distance from the top left corner of the
ImageKit Control. (i.e. OriginX = 100, OriginY = 100 means that the
top left corner of the image is 100 pixels to the left and 100
pixel below the top left corner of the ImageKit Control.)
There are three properties of the ImageKit Control that affect the
coordinates. These properties are the BorderVisible,
Appearance,
and Grad.
BorderVisible,
as its name implies, determines if the ImageKit Control has a
border or not. When BorderVisible
is true, the ImageKit Control has a border with a width of 1 pixel.
Appearance
can have three values, flat, raised or lowered. Raised and lowered
appearance each have a width of 1 pixel. Flat appearance has no
width. Finally, Grad
determines if a gradient is displayed on the top and left sides of
the ImageKit Control and its width is 20 pixels.
An illustration of the way that these properties interact to affect
the coordinates in the ImageKit Control is shown in the following
diagrams. For simplicity sake we have not included an explanation
of Grad
which will shift both the x, y coordinates depending on that
property's settings.

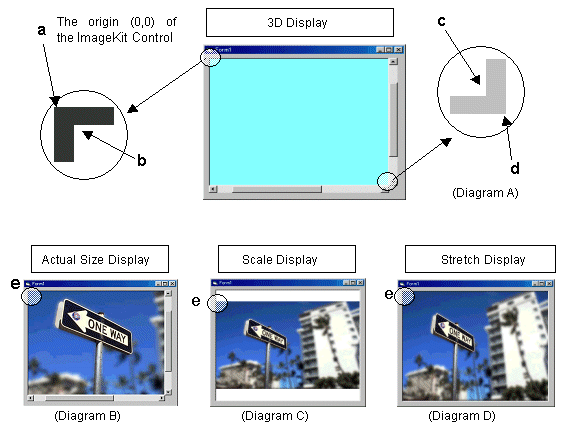

As shown in Diagram A:
a represents the outside of the top left corner of the
ImageKit Control.
b represents the inside of the top left corner of the
ImageKit Control.
c represents the inside of the bottom right corner of the
ImageKit Control.
d represents the outside of the bottom right corner of the
ImageKit Control.
e: represents the location of the top left corner of that
portion of the image being displayed in the ImageKit Control. These
coordinates are known as OriginX, OriginY and are described in
terms of their distance from point a.
(1) When BorderVisible=FALSE, Appearance settings are invalid.
a: x = 0, y = 0
b: is the same as a
d: is the size of the ImageKit Control
c: is the same as d
(2) When BorderVisible=TRUE, Appearance=Flat
a: x = 0, y = 0
b: x = 1, y = 1
d: is the size of the ImageKit Control
c: x = (width of d) - 1, y = (height of d) - 1
(3) When BorderVisible=TRUE Appearance=Raised or Lowered
a: x = 0, y = 0
b: x = 2, y = 2
d: is the size of the ImageKit Control
c: x = (width of d) - 2, y = (height of d) - 2
3. ImageKit Control events
EndDispImage
- generated after an image is displayed in the ImageKit Control or
the ImageKit Control repaints.
EndDispImage(OriginX, OriginY, Left, Top, Right, Bottom,
ScaleWidth, ScaleHeight)
OriginX, OriginY: The position in the ImageKit Control where the
top left corner of the image is placed. If the image is larger than
the ImageKit Control in the horizontal direction, OriginX will
equal 0. Likewise if the image is larger than the ImageKit Control
in the vertical direction, OriginY will equal 0.
Left,Top: The distance that the top left corner of the displayed
portion of the image is from the top left corner of the actual
image.
Right,Bottom: The distance that the bottom right corner of the
displayed portion of the image is from the top left corner of the
actual image.
ScaleWidth, ScaleHeight: The scale of the displayed portion of the
image.
[Example] (See Diagram B above) Actual size display (This image is
larger than the ImageKit Control)
When BorderVisible = FALSE, OriginX = 0 and OriginY = 0
When Appearance = RAISED or LOWERED, OriginX = 2 and OriginY =
2
Left = The horizontal distance between the left side of the
displayed portion of the image and the left side of the actual
image.
Top = The vertical distance between the top of the displayed
portion of the image and the top of the actual image.
Right = The horizontal distance between the right side of the
displayed portion of the image and the left side of the actual
image.
Bottom = The vertical distance between the bottom of the displayed
portion of the image and the top of the actual image
ScaleWidth, ScaleHeight = the value set in the DispScale
(Diagram C) Scale Display
When BorderVisible = FALSE, OriginX = 0 and OriginY = 30
When Appearance = RAISED or LOWERED, OriginX = 2 and OriginY = 32
(30 + 2)
Left = 0, Top = 0
Right = image width, Bottom = image height
ScaleWidth = 0.55, ScaleHeight = 0.55
(Diagram D) Stretch Display
When BorderVisible = FALSE, OriginX = 0 and OriginY = 0
When Appearance = RAISED or LOWERED, OriginX = 2 and OriginY =
2
Left = 0, Top = 0
Right = image width, Bottom = image height
ScaleWidth = 0.55, ScaleHeight =0.69
MouseDownImage - generated whenever a mouse button is pressed
MouseDownImage(Button, OriginX, OriginY, Left, Top, Right, Bottom,
ScaleWidth, ScaleHeight, x, y)
Button: 1 - left button 2 - right button 4 - center button
OriginX,OriginY: The position in the ImageKit Control where the top
left corner of the image is placed. If the image is larger than the
ImageKit Control in the horizontal direction, OriginX will equal 0.
Likewise if the image is larger than the ImageKit Control in the
vertical direction, OriginY will equal 0.
Left,Top: The distance that the top left corner of the displayed
portion of the image is from the top left corner of the actual
image.
Right,Bottom: The distance that the bottom right corner of the
displayed portion of the image is from the top left corner of the
actual image.
ScaleWidth, ScaleHeight: The scale of the displayed portion of the
image.
x, y: The coordinates of the point on the image where the mouse
button was pressed.
MouseUpImage - generated whenever a mouse button is released.
MouseUpImage(Button, OriginX, OriginY, Left, Top, Right, Bottom,
ScaleWidth, ScaleHeight, x, y)
Button: 1 - left button 2 - right button 4 - center button
OriginX,OriginY: The position in the ImageKit Control where the top
left corner of the image is placed. If the image is larger than the
ImageKit Control in the horizontal direction, OriginX will equal 0.
Likewise if the image is larger than the ImageKit Control in the
vertical direction, OriginY will equal 0.
Left,Top: The distance that the top left corner of the displayed
portion of the image is from the top left corner of the actual
image.
Right,Bottom: The distance that the bottom right corner of the
displayed portion of the image is from the top left corner of the
actual image.
ScaleWidth, ScaleHeight: The scale of the displayed portion of the
image.
x, y: The coordinates of the point on the image where the mouse
button was released.
MouseMoveImage - generated whenever a mouse is moved
MouseMoveImage(OriginX, OriginY, Left, Top, Right, Bottom,
ScaleWidth, ScaleHeight,x, y)
Button: 1 - left button 2 - right button 4 - center button
OriginX,OriginY: The position in the ImageKit Control where the top
left corner of the image is placed. If the image is larger than the
ImageKit Control in the horizontal direction, OriginX will equal 0.
Likewise if the image is larger than the ImageKit Control in the
vertical direction, OriginY will equal 0.
Left,Top: The distance that the top left corner of the displayed
portion of the image is from the top left corner of the actual
image.
Right,Bottom: The distance that the bottom right corner of the
displayed portion of the image is from the top left corner of the
actual image.
ScaleWidth, ScaleHeight: The scale of the displayed portion of the
image.
x, y: The coordinates of the point on the image where the mouse
movement occurred.
4. Displaying Images
Whenever you display an image, you must set the image in the
ImageKit Control, initialize the ImageKit Control and then display
the image. The syntax for this is shown below for each development
container.
[VB]
{controlname}.LayerNo = -1
{controlname}.File.FileName = "c:\Image\001.jpg"
{controlname}.DisplayMode = ikScale 'or ikStretch, ikActualSize
{controlname}.File.LoadFile(ikLoad) 'loads the image and sets the
ImageHandle property
{controlname}.DisplayImage
[VC++]
{controlname}.SetLayerNo(-1);
{controlname}.GetFile().SetFileName("c:\Image\001.jpg");
{controlname}.DisplayMode(ikScale); //or ikStretch,
ikActualSize
{controlname}.GetFile().LoadFile(ikLoad); //loads the image and
sets the ImageHandle property
{controlname}.DisplayImage();
There are two ways to set the position of an image in the ImageKit
Control. The first way, using the StartX and StartY properties,
places the top left corner of the image at a specified point in the
ImageKit Control. The second way, using the DispCenterX and
DispCenterY properties, places a specified point on the image in
the center of the ImageKit Control. See below.
Displaying images from a particular position (Actual size display
only)
Example: displaying an image from a position 10 pixels to the left
and 20 pixels below the top left corner of the ImageKit
Control.
The DispCenterX and DispCenterY properties are ineffective.
StartX = 10
StartY = 20
DisplayMode = ikActualSize
DisplayImage
Displaying an image from a position where a specified point on the
image is placed in the center of the ImageKit Control. (Actual size
display only)
Example: The point on the image 200 pixels to the left and 100
pixels below the top left corner is placed in the center of the
ImageKit Control.
Set StartX and StartY = 0
DispCenterX = 200
DispCenterY = 100
DisplayMode = ikActualSize
DisplayImage
Displaying an image at a certain magnification (Actual size display
only)
Example: Displaying an image at 1.5 times normal size
DispScale = 1.5 'sets the magnification to 1.5 times
DisplayMode = ikActualSize
DisplayImage
5. The device context of the ImageKit Control
(1) Hdc

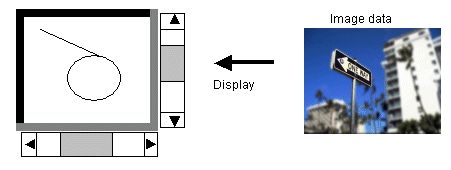

This is the device context for the screen. By using
the PrintDraw interface methods (or DLL functions)
in conjuction with the Hdc, you can draw lines, shapes, text, etc
to the screen. Note: whatever is drawn to the Hdc will only appear
on the screen and NOT be drawn to the image itself. To draw to the
image, you must use the ImageHdc. See below.
[VB Example (OCX)]
The following code will draw a line and circle on the screen (draw
to the Hdc) but will not draw to the image data.
ImageKit1.LayerNo = -1
ImageKit1.File.FileName = "c:\Image\001.jpg"
ImageKit1.DisplayMode = ikScale 'or ikStretch,
ikActualSize
ImageKit1.File.LoadFile(ikLoad) 'loads the image and sets the
ImageHandle property
ImageKit1.DisplayImage
' drawing a line
ImageKit1.PrintDraw.ClearProperty
ImageKit1.PrintDraw.PenWidth = 1
ImageKit1.PrintDraw.PenStyle = ikPenSolid
Ret = ImageKit1.PrintDraw.Line(ImageKit1.Hdc, 10, 10, 300, 200,
ikScreen)
' drawing an ellipse
ImageKit1.PrintDraw.ClearProperty
ImageKit1.PrintDraw.PenWidth = 2
ImageKit1.PrintDraw.PenStyle = ikPenSolid
ImageKit1.PrintDraw.BrushStyle = ikBrushHatchBdiagonal
ImageKit1.PrintDraw.BrushColor = RGB(255, 0, 0)
ImageKit1.PrintDraw.Transparent = True
Ret = ImageKit1.PrintDraw.Ellipse(ImageKit1.Hdc, 300, 200, 500,
400, ikScreen)

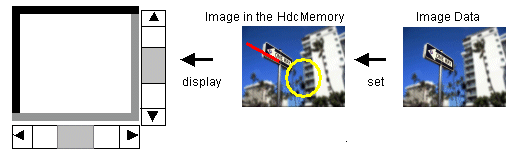

(2) ImageHdc
This is the device context for the image. By using
the PrintDraw interface methods (or Ik8Print.dll
functions) in conjuction with the ImageHdc, you can draw lines,
shapes, text, etc directly to the image data. Note: whatever is
drawn to the ImageHdc will not immediately appear on the screen
until that image data is passed to the Hdc. This can be done using
the Modify method. (see the example below)
[VB Example (OCX)]
The following code will draw a line and circle on the image data
(draw to the ImageHdc) but the line and ellipse will not appear on
the screen unless the Modify method is called.
ImageKit1.LayerNo = -1
ImageKit1.File.FileName = "c:\Image\001.jpg"
ImageKit1.DisplayMode = ikScale 'or ikStretch,
ikActualSize
ImageKit1.File.LoadFile(ikLoad) 'loads the image and sets the
ImageHandle property
ImageKit1.DisplayImage
ImageKit1.EditEnable = True 'enables editing
' drawing a line
ImageKit1.PrintDraw.ClearProperty
ImageKit1.PrintDraw.PenWidth = 1
ImageKit1.PrintDraw.PenStyle = ikPenSolid
Ret = ImageKit1.PrintDraw.Line(ImageKit1.ImageHdc, 10, 10, 300,
200, ikScreen)
' drawing an ellipse
ImageKit1.PrintDraw.ClearProperty
ImageKit1.PrintDraw.PenWidth = 2
ImageKit1.PrintDraw.PenStyle = ikPenSolid
ImageKit1.PrintDraw.BrushStyle = ikBrushHatchBdiagonal
ImageKit1.PrintDraw.BrushColor = RGB(255, 0, 0)
ImageKit1.PrintDraw.Transparent = True
Ret = ImageKit1.PrintDraw.Ellipse(ImageKit1.ImageHdc, 300, 200,
500, 400, ikScreen)
To display the image data on the screen, execute the modify method.
This passes the contents of the ImageKit1.ImageHdc to the
ImageKit1.ImageHandle
ImageKit1.Edit.Modify

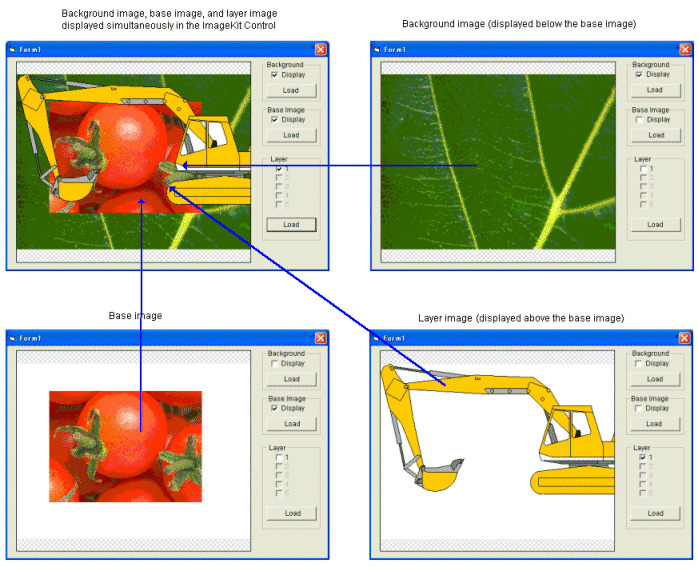

6. Image layers within the ImageKit Control.
The ImageKit8 ActiveX allows you to display multiple images
simultaneously in the ImageKit Control. The ImageKit Control
displays a background image, a base image, and up to 100 images in
distinct image layers using the Layer interface. The background
image is displayed, the base image is displayed on top of the
background, and the images in the Layer interface are displayed
above the base image. Images displayed using the Layer interface
are assigned an index with the image whose index is larger being
displayed on top of images whose index is smaller. If the grid
property or grad property are set to true, then the grid and
graduation are displayed on top of the highest image layer. Note
that as the number of images displayed simultaneously increases
there is a cost in processor speed and memory use, this is
especially true if transparency is used.
