RGBGamma (ImageKit Control/ Effect Method)

This method uses gamma correction to adjust the RGB values of a raster image.

[Visual Basic] [ Boolean = ]imagekitcontrolname.Effect.RGBGamma(x As Long, y As Long, Points As Long, Red As Double, Green As Double, Blue As Double)

[Visual C++] [ BOOL = ]imagekitcontrolname.GetEffect().RGBGamma(long *x, long *y, long Points, double Red, double Green, double Blue)

[VB.NET] [ Boolean = ]imagekitcontrolname.Effect.RGBGamma(ByRef x As Integer, ByRef y As Integer, Points As Integer, Red As Double, Green As Double, Blue As Double)

[C#.NET] [ Boolean = ]imagekitcontrolname.Effect.RGBGamma(ref int x, ref int y, int Points, double Red, double Green, double Blue)

Parameters

Name	Explanation
x	An array of x coordinate values defining points of a polygonal area on the image. (in pixels) *(see Note below)
y	An array of y coordinate values defining points of a polygonal area on the image. (in pixels) *(see Note below)
Points	The number of points defining the polygonal area on the image.
Red	The gamma factor for the red plane
Green	The gamma factor for the green plane
Blue	The gamma factor for the blue plane
* NOTE for retrieving array values: In Visual Basic, if the array is defined as Dim x(0 To 2) As Long, then the arguments are returned in x(0). In Visual C++, pass the pointer to the first element in the array. In VB.NET, the arguments are returned in x(0). In C#.NET, the arguments are returned in x[0].

Return Value

Returns True (nonzero) if successful, otherwise returns False (0).

Explanation

The RGBGamma method uses gamma correction to adjust the RGB values and overall brightness of a raster image. The formula used to calculate the output is given below:

Where x is the input RGB value, y is the output RGB value and bright is the gamma factor for the red, green and blue planes. (The Red, Green, and Blue parameters respectively).

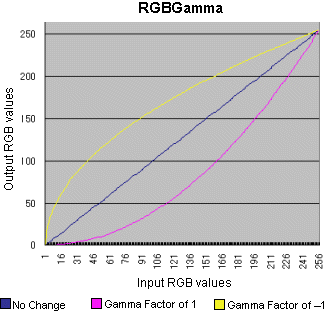

When the Red, Green, and Blue parameters all equal 0, the input RGB values and output RGB values are equal meaning there is no change in the image. As the Red, Green, or Blue parameters increase in a positive direction, the output RGB values become lower than the input RGB values. As the Red, Green, or Blue parameters increase in a negative direction, the output RGB values become higher than the input RGB values. Please refer to the diagram below which shows the change in RGB values for a gamma factor of 1 and also for a gamma factor of -1.

To execute the RGBGama method, set the image handle of the image in the ImageHandle property or the Layer(LayerNo).ImageHandle property. The RGBGamma method supports 1, 4, 8, 16, 24, and 32 bit images.

Before executing the RGBGamma method, you must set the area on the image that will be affected. There are 4 ways to do this.

To use a mask image, set the SelectMode property to 0. Set the mask image handle in the MaskImageHandle property
To process the total image, set the SelectMode property to 1
To process the polygonal area on the image, set the SelectMode property to 2. Select the polygon by setting the appropriate coordinate values for the points of the polygon in two arrays, one array for the x coordinate values and one array for the y coordinate values. The pass these arrays to the x and y arguments of the RGBGamma method. The number of points defining the polygon must be 3 or more
To process an elliptical area on the image, set the SelectMode property to 3. Select the ellipse by setting the appropriate values for the bounding rectangle in the RectLeft, RectTop, RectRight, and RectBottom properties

When the SelectMode property is set to values other than 2 (ikEffectPolygon), please set dummy arrays in the x and y parameters and set the Points parameter to 0.
When the SelectMode property is set to 2 or 3, the appropriate value must be set in the InOut property. When a 1, 4, or 8 bit image is processed, the total image will be processed regardless of the value set in the SelectMode property.

If successful the resulting raster image data is set in the LayerNo property (the ImageHandle property or the Layer(LayerNo).ImageHandle property. If unsuccessful, 0 is returned.

When the Caption, Message, and ButtonName properties are blank, the progress dialog box will not be displayed. When the progress dialog box is displayed, the percentage that the processing has completed will be shown in the dialog box.

For scripting languages and other programs that require variant types, or when using VB.NET or C#.NET in 64 bit builds, please refer to the RGBGammaVariant method.
